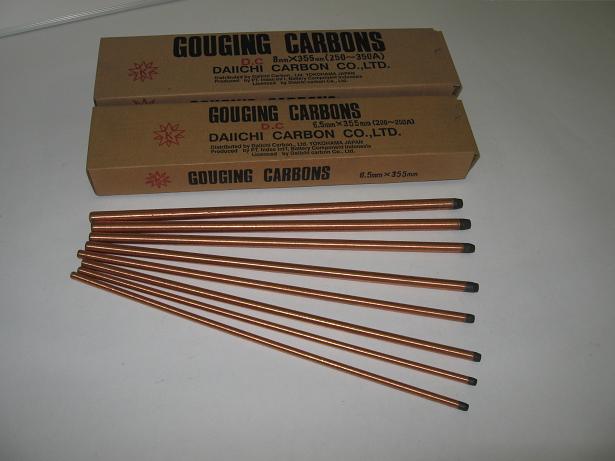

Gouging Carbons, or Arc-air Gouging Carbons are developped for cutting, grooving,
smoothing on various kinds of alloys, such as Nickel Alloy, Titanium Alloy,
Manganese Steel, Casted Steel, and other hard alloys. Our Gouging Carbons are
manufactured of high purity Graphite and copper-coated so that DAIICHI Gouging
Carbons can increase electric conductivity, maintain arc stability and keep
the diameter of carbon-top in constant dimension.
@Very Reasonable Price realized by highly automated manufacturing
AExcellent working Efficiency and Low Noise due to stable burning
BEasy to detect cracks on workpieces after gouging, due to consistency of
materials used, and arc-burning stability
D.C Gouging Carbons are suitable for many gouging works such as boring,
cutting, bead removing and cracks removing
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
DG 4012 | 4.0 | 305 | Coated | 150`200 |
DG 5012 | 5.0 | 305 | Coated | 150`200 |
DG 6514 | 6.5 | 355 | Coated | 200`250 |
DG 8014 | 8.0 | 355 | Coated | 250`350 |
DG 9014 | 9.0 | 355 | Coated | 350`450 |
DG 9514 | 9.5 | 355 | Coated | 350`450 |
DG 11014 | 11.0 | 355 | Coated | 450`600 |
Blasting Carbons are specially designed to give excellent performance
under very high current. They are good at finishing work to hard alloys
and castings with amazingly high efficiency.
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
DB 13014 | 13.0 | 355 | Coated | 700`800 |
DB 16014 | 16.0 | 355 | Coated | 900`1000 |
DB 19014 | 19.0 | 355 | Coated | 1300`1400 |
DAIICHI A.C. Gouging Carbons have excellent arc stability.
They receive good reputations from both overseas and domestic users
for the reliable performance and low price.
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
AG 4012 | 4.0 | 305 | Coated | 100`200 |
AG 5012 | 5.0 | 305 | Coated | 200`300 |
AG 6512 | 6.5 | 305 | Coated | 250`350 |
AG 8012 | 8.0 | 305 | Coated | 300`450 |
Bead Blasting Carbons are most suitable for bead-removing works.
Due to their strong blasting performace, you can speed up the jobs.
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
DBB 105 | 10.0 | 305 | Coated | 250`350 |
DBB 155 | 15.0 | 305 | Coated | 350`450 |
DBB 205 | 20.0 | 305 | Coated | 450`600 |
DHM13712 | 13.0 | 305 | Coated | 250`350 |
DHM16812 | 16.0 | 305 | Coated | 350`450 |
These Carbons are very suitable for U-shape gouging jobs.
Normal Gouging Carbons drill sharply. Hollow-type gouging Carbons
are good at drill wide and shallow.
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
DGC 6512 | 6.5 | 305 | Coated | 200`300 |
DGC 8012 | 8.0 | 305 | Coated | 250`350 |
DGC 9512 | 9.5 | 305 | Coated | 350`450 |
DGC11012 | 11.0 | 305 | Coated | 400`500 |
By using Joint Carbons you can save the loss of stabs of burnt
carbons, and also you can do the long-time continuous gouging jobs.
Model | Dia.(mm) | Length(mm) | Copper-coat | Current(A) |
DJ 8014 | 8.0 | 355 | Coated | 250`350 |
DJ 9514 | 9.5 | 355 | Coated | 350`450 |
DJ 13014 | 13.0 | 355 | Coated | 700`800 |
DJ 16014 | 16.0 | 355 | Coated | 900`1000 |
DJ 19014 | 119.0 | 355 | Coated | 1300`1400 |
DJL 9517 | 9.5 | 430 | Coated | 350`450 |
DJL 11017 | 11.0 | 430 | Coated | 400`500 |
DJL 13017 | 13.0 | 430 | Coated | 700`800 |
DJL 16017 | 16.0 | 430 | Coated | 900`1000 |
DJL 19017 | 19.0 | 430 | Coated | 1300`1400 |
